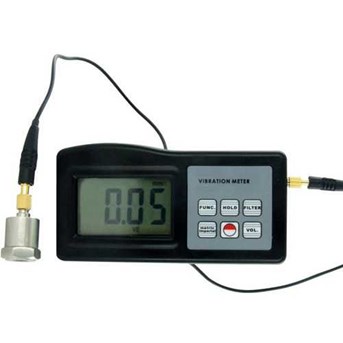

Dekko VM-8200 Vibration Meter

DEKKO VM-8200 Vibration Meter

Features

• In accordance with ISO 2934, used for periodic measurement, to detect out-of-balance, misalignment and other mechanical faults in rotating machines.
• Speciality designed for easy on site vibration measurement of all rotating machinery for quality control, commissioning and predictive maintence purpose.
• Individual high quality accelerometer for accurate and repeatable measurements.
• Bearing conditions monitoring function.
• LCD digital display.
• Lightweight and easy to use.
• Wide frequency range (10Hz to 10KHz) in acceleration mode.
• AC output socket for headphones and recording.
• Optional headphones for use as electronic stethoscope.
• Can communicate with PC computer for statistics and printing by the optional cable and the software for RS232C interface.

Specification

Display : 4 digits, 18 mm LCD, Measured values and makers ( units, 10, and battery symbol)

Transducer : Piezoelectric accelerometer.

Parameters measured : Velocity, Acceleration, Displacement RPM and Frequency.

Measuring range :

Velocity :

0.01 - 40.00cm/s true RMS

0.000 - 16.00inch/s

Acceleration :

0.1 - 400.0m/s equivalent peak

0.3 - 1312ft/s

Displacement :

0.001 - 4.000mm

0.04 - 160.0mil, equivalent pk - pk

RPM (r/min) :

• 60 - 99.990r/min

Reading should be multiplied by 10 if the display show ‘10’.

Frequency : 1 - 20kHz.

Frequency range for measuring

Acceleration :

• 10Hz to 10kHz in ‘1’ mode.
• 10Hz to 10kHz in ‘10’ mode for bearing condition check.

Velocity : 10Hz to 1kHz.

Displacement : 10Hz to 1kHz.

Accuracy : ±5% ±2digits.

Metric/Imperial conversion.

PC interface : RS232C.

Output : AC output 2.0V peak full scale (load resistance above 10k).

Power supply : 4 x 1.5AAA size (UM-4) batteries.

Power off : 2 modes, Manual off at any time.

Operating conditions :

• Temperature : 0° - 50°C.
• Humidity : below 90% RH.

Dimensions : 124 x 62 x 30mm/4.9 x 2.4 x 1.2inch.

Weight : 120g (not including batteries).

Accessories included:

• Powerful rare earth magnet
• Accelerometer
• Stringer probe (Cone)
• Stringer probe (Ball)
• Carrying case
• Operation Manual

Optional accessories :

• Headphone for use as electronic stethoscope
• Cable and software for RS232C
