HIOKI 3665-20

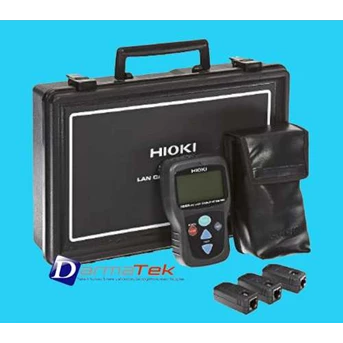

HIOKI 3665-20 LAN Cable HiTester

LAN Cable Tester for Shielded and Unshielded Twisted Pair Cables

The 3665-20 is a hand-held LAN cable tester to easily test wiremap, measure cable length and identify twisted-pair cables, and is useful for verifying

connections after installing connectors on cables. Optional terminators that facilitate easy identification of multiple cables make the LAN cable tester especially convenient for testing cables in working networks in the event of faults caused by open- or short-circuited cable wiring.

For direction checks enabling individual wires to be identified, please purchase optional Terminators 9690-01 to -04.

Overview

Wire map check : Detect split pairs with wiring check
Cable length : Get NVP-Enhanced measurement accuracy
Direction check : Identify up to 21 cable destinations

Specifications :

Measurable cable

Twisted-pair cable, characteristic impedance: 100 , shielded and unshielded, CAT 3, 4, 5, 5e and 6

Compatible connectors

RJ-45 plugs

Wire map test

Detectable errors: open, short, reversed, transposed, split pairs and other incorrect wiring

(Wiring condition and shielding can be confirmed using the Terminator 9690)

Cable length measurement

Measurable lengths: 2 m to 300 m (6.6 ft to 984 ft)

Measurement accuracy: 4 % rdg. 1 m (3.3 ft)

Display resolution: 0.1 m (0.3 ft)

Direction measurement

Up to 21 cables can be identified using the supplied Terminator 9690 and optional Models 9690-01 to 9690-04

Power supply

LR6 (AA) alkaline battery 2, 1.4 VA max., Continuous use : 50 hr (at measurement interval of 1 minute)

Dimensions and mass :

85 mm (3.35 in)W 130 mm (5.12 in)H 33 mm (1.30 in)D, 160 g (5.6 oz) (without

==================================
