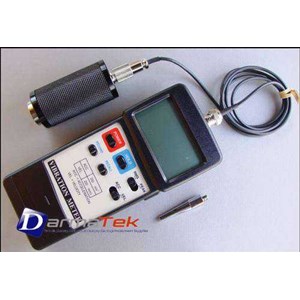

LUTRON VB 8202 Vibration Meter

Features:

* Applications for industrial vibration monitoring : All industrial machinery vibrates. The level of vibration is a useful guide to machine condition. Poor balance, misalignment & looseness of the structure will cause the vibration level increase, it is a sure sign that the maintenance is needed.
* Separate vibration probe.
* Frequency range 10 Hz - 1 kHz, sensitivity relative meet ISO 2954.
* Professional vibration meter supply with vibration sensor, full set.
* Velocity measuring range 200 mm/ s.
* Acceleration range 200 m/ s .
* RMS & peak measurement.
* Data hold.
* Memory function to record max. and min. reading with recall.
* Complete set with hard carrying case.

Specification:

Display 61 mm x 34 mm supper large LCD 15 mm ( 0.6 " ) digit size..
Data output RS 232 serial output,
Power supply Alkaline or heavy duty type DC 9V battery
Measurement Range Velocity 2 ranges, 20 and 200 mm/ S.,
Measurement Range Acceleration 2 ranges, 200 and 2000 m/ S^ 2
Power current Approx. DC 6 mA.
Caliration 159 Hz, 10 m/ S ± 5 % .
Frequency range 10 Hz to 1 KHz.
Dimension Meter : 180 x 72 x 32 mm ( 7.1 x 2.8 x1.3 inch ) .
Dimension Vibration sensor probe: Round 19 mm Dia. x 21 mm.
Accuracy ± ( 5 % + 2 d ) reading , @ 160 Hz, 80 Hz. @ 23 ± 5 æ C
Calibration point Velocity : 50 mm/ s ( 160 Hz )
Acceleration : 50 m/ s^ 2( 160 Hz )
Weight Meter 230 g/ 0.50 LB, Probe 38 g/ 0.09 LB

= = = = = = = = = = = = = = = = =
