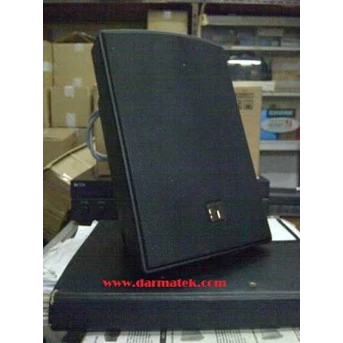

TOA ZS 1030B

Keterangan: ZS-1030B is a small, 2-way bass-reflex type speaker featuring a wide frequency range suitable for use for announcements and music playback. The ZS-1030B can be used for both high-impedance and low-impedance applications. The speaker' s splash-proof construction permits it to be installed under the eaves where the speaker is not directly exposed to rain. Specifications Enclosure : 2-way bass-reflex type Rated Input : 30 W Rated Impedance : 8 100 V line: 330 ( 30 W) , 500 ( 20 W) , 670 ( 15 W) , 1 k ( 10 W) , 2 k ( 5 W) 70 V line: 170 ( 30 W) , 250 ( 20 W) , 330 ( 15 W) , 500 ( 10 W) , 1 k ( 5 W) Sound Pressure Level : 90 dB ( 1 W, 1 m) Frequency Response : 80 Hz - 20 kHz Speaker Component : 12 cm cone-type + dome-type Speaker Cord : 2-core cabtyre cord with diameter of 6 mm Operating Temperature : -10  to + 50  Water Protection : IPX4 ( can be installed vertically or horizontally.* ) Finish Enclosure: ABS resin, black ( RAL9011 GRAPHITE BLACK) , paint Net: Surface treated steel plate, black ( RAL9011 GRAPHITE BLACK) , powder coating Bracket: Surface treated steel plate, black equivalent to RAL9011 GRAPHITE BLACK, powder coating Dimension : 196 ( W) 290 ( H) 150 ( D) mm ( unit only) Weight : 2.5 kg ( unit only) Accessory : Bracket 1, Bracket mounting screw 2, Bracket mounting washer 2 Option Applicable bracket: WCB-12, TMB-1, SP-410 Applicable stand: ST-16 Untuk Info dan Pemesanan Hubungi : DARMATEK Contact : Subarkah Telpon : 021-71031268 Fax : 021-78890541 H P : 081283804273/ 085774067221 Email : subarkah18@ yahoo.co.id Gmail : darmatek1@ gmail.com Pin BB : 7512CBB7 Y M : cs_ darmatek Web : http: / / www.darmatek.com Link : http: / / darmatek.indonetwork.co.id http: / / darmatek01@ blogspot.com
