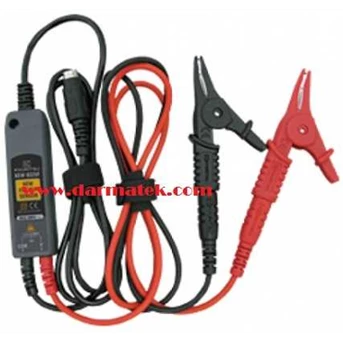

KYORITSU 8325F

Flicker Sensor Kyoritsu 8325F

Spesifications :
• Can measure Flicker in combination with KEW6310.

Max. input voltage | AC 600Vrms, 848.4Vpeak
Input method | Differential input
Output voltage | AC 0~ 600mV ( output/ input: 1mV/ V)
Measurement range | 6~ 600V
Accuracy
( Frequency range) | ± 0.5% rdg± 0.1mV ( 50/ 60Hz)
Operating Temperature and Humidity Ranges | 0~ 40º C, less than 85% RH ( no condensation)
Input impedance | Approx. 3.2M©
Output impedance | Approx. 1k©
Environment condition | Altitude up to 2000m in indoor
Applicable standards | IEC/ EN 61010-1: 2001 Measurement CAT.III 600V, pollution degree 2
| IEC/ EN 61010-031: 2002, IEC 61326: 2001 ( EMC standard)
Withstand voltage | AC 5350V ( actual value 50/ 60Hz) / for 5 seconds interval
| measurement terminal and exterior main body
External dimensions/ mass | 87( L) × 26( W) × 17( D) mm ( protrusions omit) /
| Approx. 135g
Length | Approximately 2m
Output terminal | MINI DIN 6PIN
Accompanying items | Instruction manual
Option | 7197 ( Small safety clip)

===================================
