Product Description
- Detects opens, shorts, miswires and split pairs on the twisted pair cabling on the LAN cable.
- Measures length.
- Auto backlit.
- Auto power off.
Applications :
The backlit LCD screen displays graph wire-map, opens, shorts, miswires, split pairs and the remote ID number all on one screen. Using multiple remote ID up to 8 locators to test on RJ-45 (UTP, STP) LAN cable.
Specification :

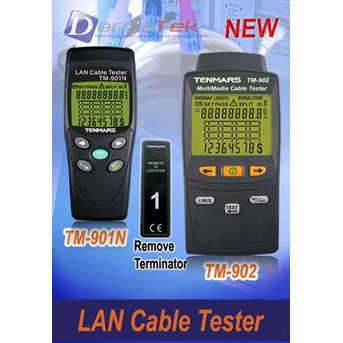

Model: TM-901N TM-902 ( for OEM olny)
Connector type : RJ-45
Cable category : LAN cable ( UTP, STP) , cable.
Wire-map test : Detects opens, shorts, miswires, split pairs
Length test : up to 255 M ( 836 ft)
Length resolution : 0.1 m ( ft)
Length units : Meter and Foot
Accuracy : + / - 10% + 1.0M ( 3 ft)
Operating temp. and RH : 5 to 40 º C, below 80% RH.
Storage temp. and RH : -10 to 60º C, below 70% .
Power : 9V batteryx1 1.5V battery x 6
Dimensions : ( L x W x H) 130 x 56 x 38mm. 156 x 73 x 35mm
Weight : About 160g , About 170g
Accessories : User’ s manual, battery, Carrying case, Test Cable x1, Remote ID ( 1) x1
= = = = = = = = = = = = = = = = =
